8K IP Camera Tester, WANLUTECH CCTV Tester 7 inch Touchscreen 8MP TVI CVI AHD SDI CVBS Camera Test SFP 90W PoE Power output RJ45 Cable Test Network Tools RS485 WiFi HDMI I/O VGA in (IPC-9800CADHS Pro)
US$170.40
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.maurocarafapsicologo.it
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
US$170.40
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.maurocarafapsicologo.it
Free 30-day returns Details
Product details
| Management number | 239266694 | Release Date | 2026/07/14 | List Price | US$170.40 | Model Number | 239266694 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

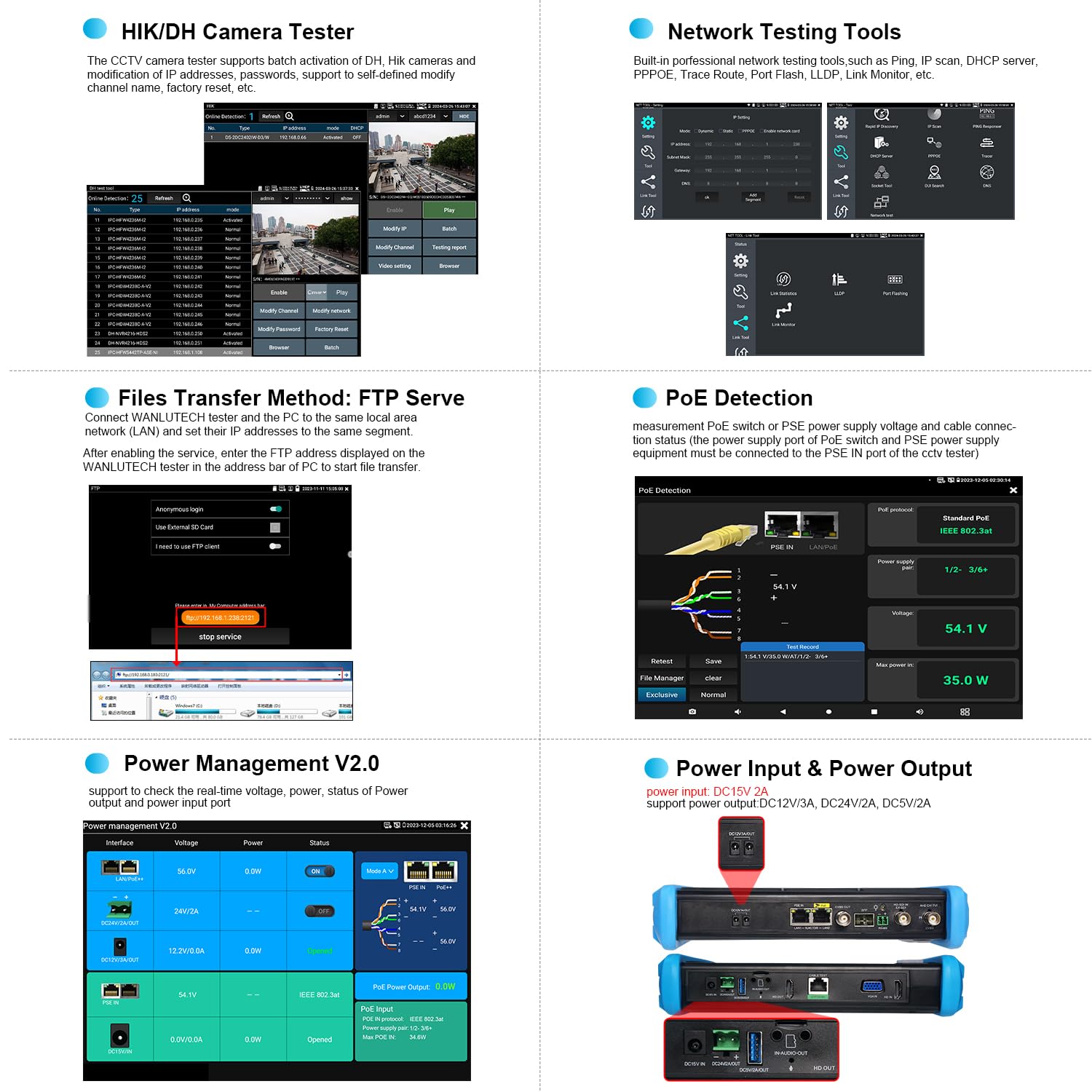

- [ Upgraded IP Analog Camera Tester ] WANLUTECH 8K IP camera tester has 7'' touchscreen, 1280x800 resolution. It support to test max 8K 32MP 4K 12MP IP cameras, support CVBS analog camera test. The IP camera tester supports batch activation of DH, Hik cameras and modification of IP addresses, passwords, etc. Support IPC Test /IP Discovery/Rapid Video/RTSP Play /Quick OVIF/Hik DH test tool/Client APK. Support 1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt). Support CVBS loop test, the tester send and receive color bar generator signal, check BNC cable
- [ AHD TVI CVI SDI Camera Tester ] WANLUTECH IP camera tester with poe support to test max 8MP SDI/AHD/TVI/CVI/CVBS camera. Using "AUTO HD" app can automatically recognize AHD CVI TVI CVBS cameras and display resolution and frame rate on the screen, supports UTC control & call OSD menu, menu settings, screenshot, video recording, video playback, etc. Support color bar generator, output one channel PAL/NTSC color bar video signal
- [ Cable Tester ] Cable Tracer: Searching for BNC cable, network cable and telephone cable from cluttered cables,also can search shield cables. RJ45 Cable TDR Test: it can test cable pair status, length, attenuation, reflectivity, impedance, skew. UTP Cable Tester: test UTP cable connection status and display on the screen, support detect the near-end, mid-end and far-end fault point of the RJ45 cable plug. Cable Length Test: Measure the breakpoint position of (open circuit status) BNC cables, RJ45 network cables, RJ11 cables
- [ PoE & SFP & Network Test Tools & WIFI ] wanlutech ip camera tester with PoE supports max 55V 90W PoE power output, temporarily powers the high-power PTZ camera or other devices supported by the IEEE 802.3af/at/bt standard PoE protocol. It has a gigabit SFP optical fiber module port, support insert SFP optical fiber module, for optical fiber network testing. Network Test Tools: built-in porfessional network testing tools,such as Ping, IP scan, DHCP server, PPPOE, Trace Route, Port Flash, LLDP, Link Monitor, etc. WI-FI analyzer(2.4GHz frequency band) support to analyse wi-fi signal strength,channel,channel level, support create WI-FI hotspot
- [ Multifunction CCTV Camera Tester ] Power Management: support to check the real-time voltage, power, status of Power output and power input port. Drop-down menu, Media player, including 8GB TF card, Dual Gigabit Ethernet Ports, HDMI in/out, VGA in, Audio in/out, RS485 port. Power input:DC15V 2A. Power output:DC12V/3A, DC24V/2A, DC5V/2A
- [ PLEASE NOTE ] There is a paper piece isolating the battery. Before using the tester, open the battery cover and remove the paper sheet. We are the manufacturer. Any questions, please let us know, We'll get back to you within 12 hours
| ASIN | B0CN93C75P |
|---|---|
| Brand Name | WANLUTECH |
| Item Weight | 2 Kilograms |
| Part Number | IPC-9800CADHS Pro |
| Manufacturer | GUANGZHOU WANGLU TECHNOLOGY CO.,LTD |
| Included Components | cctv tester+cable tracer+accessories |
| Warranty Description | 1 year |
