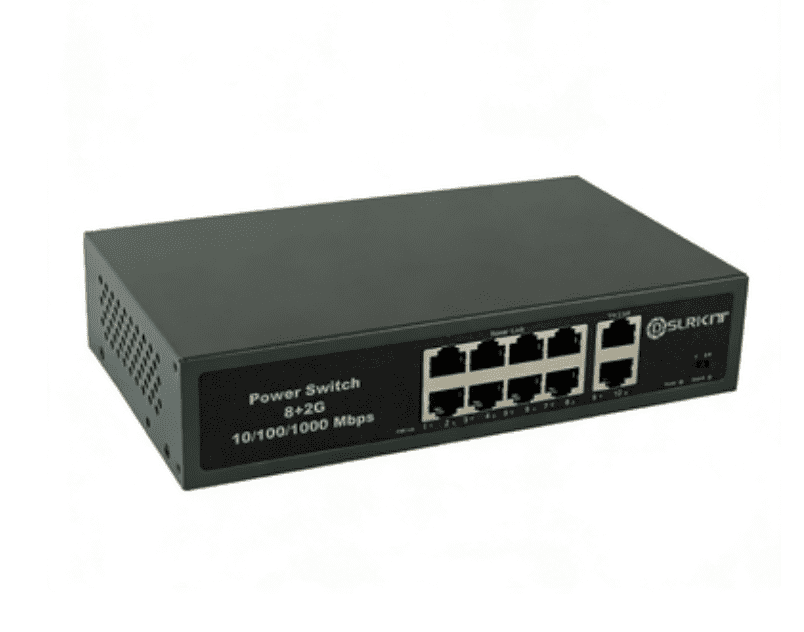

DSLRKIT 2 Gigabit 8 PoE Switch Injector 52V 2.3A 120W Ethernet 1000Mbps 250meter

DSLRKIT PSE8P2GUP&nbsp;Passive PoE Injector Switch10/100/1000Mbps Ethernet Gigabit&nbsp;Uplinkports&nbsp;x2<br>Internal Power&nbsp;52V&nbsp;Max.120Watt<br> &nbsp;<br>Support EXTEND mode, max Network Cable length to 250 meters<br>NOTE. When EXTEND mode enable, the Max bandwidth for the Power Link (PoE) port 1-8 network port will be reduced to 10Mbps for each one. Please check your IP CAMERA's&nbsp; bit stream setting. We recommend the value does not over 8Mbps(8192Kbps).<br>When EXTEND mode is on (EXTEND indicator is on), 8 ports POE LAN is 10Mbps<br>When EXTEND mode is off (EXTEND indicator is off), 8 ports POE LAN is 100Mbps<br><br>(The up-link is not affected, it will always working at 1000Mbps max speed)<br>10&nbsp;Ports (2 Gigabit Uplink,&nbsp;8 100Mbps&nbsp;PoE)<br>Midspan Mode-B<br>Unsolicited Power(4,5+/7,8-)<br>Compatible IEEE 802.3af/at, Per port Max 50Watt<br>&nbsp;<br>Wall Mount<br>(If you switch to the EXTEND mode, the Max allowable Network Cable length will increased to 250 meters. So we use 52V power. This will avoids the power loss over the long distances, and will make sure the PoE IP Camera working.)<br>((Please select according your device power consumption, in order to ensure device stable running, the total power consumption should not exceed 120watt of the power supply))<br>Ifyour camera is with word “12V/PoE” as this picture shows, then please select this 52V&nbsp;PoE Switch, do not select 12V PoE Switch.<br>Because "12V/PoE" means it can offer power supply to camera via 12V DC port or 48V(or 52V) PoE Ethernet port<br>&nbsp;<br>This is an Passive&nbsp;Power Over Ethernet of 10&nbsp;port Ethernet switches, including&nbsp;8 unsolicited PoE Ethernet ports and&nbsp;2 Gigabit&nbsp;Ethernet Uplink ports. With an external 110V-240VAC to 52VDC power supply, any one of the&nbsp;8 port can provide output power, each Ethernet port can provide network transmission speeds of up to 10 / 100Mbps , with Cat5 / 5e / 6 network cable.<br>Which compatible with IEEE 802.3af/at Mode-B(4,5+/7,8-) POE switch device, but it does NOT include the 802.3af/at compliant detection feature.&nbsp; It supplies power NO MATTER WHAT, so don't plug the "Power Link 1~8" side into anything that isn't ready for it.<br>This POE switch only support 10/100M connection, PoE ports do not support Gigabit ethernet connection, because&nbsp; "Power Link 1~8" port using 4,5,7,8 pin as power transfer, Please <br>do not connect any "NONE PoE gigabit ethernet device and Uplink device" on "Power Link 1~8" port, this will damage your device.<br>Gigabit(1000Mbps) ethernet device&nbsp;<br>Please do not access "Power Link port" this will damage your device.<br>Compatible all&nbsp;802.3af/at device as Wireless Access Point, IP Phone, IP camera, Gateway , Switch, or More.....<br><br>Features:<br>2&nbsp;x 10/100/1000Mbps UPlink,&nbsp;8&nbsp;x 10/100Mbps Auto-negotiation Fast Ethernet RJ-45 ports with 8-Ports PoE function<br>Switch Controller Chips Realtek RTL8367N + RTL8309N<br><br>Support EXTEND mode, max Network Cable length to 250 meters.<br>Midspan Mode-B Unsolicited Power(4,5+/7,8-)<br>Supports PoE power up to 120W for all PoE ports, Per port Max 52V 1A or 50Watt<br>Supports PoE IEEE802.3af/at compliant Powered Device (PD)<br>Each port supports auto MDI/MDIX, so there is no need to use cross-over cables.<br>Full/half duplex transfer mode for each port.<br><br><br>Item Included:<br> DSLRKIT PSE8P2GUP 10pots 8PoE Unsolicited(Passive) PoE Gigabit switch x1<br> AC Power Cable x1

• Support EXTEND mode, max Network Cable length to 250 meters
• 2 x 10/100/1000Mbps UPlink, 8 x 10/100Mbps Auto-negotiation Fast Ethernet RJ-45 ports with 8-Ports PoE function
• Each port supports auto MDI/MDIX, so there is no need to use cross-over cables.
