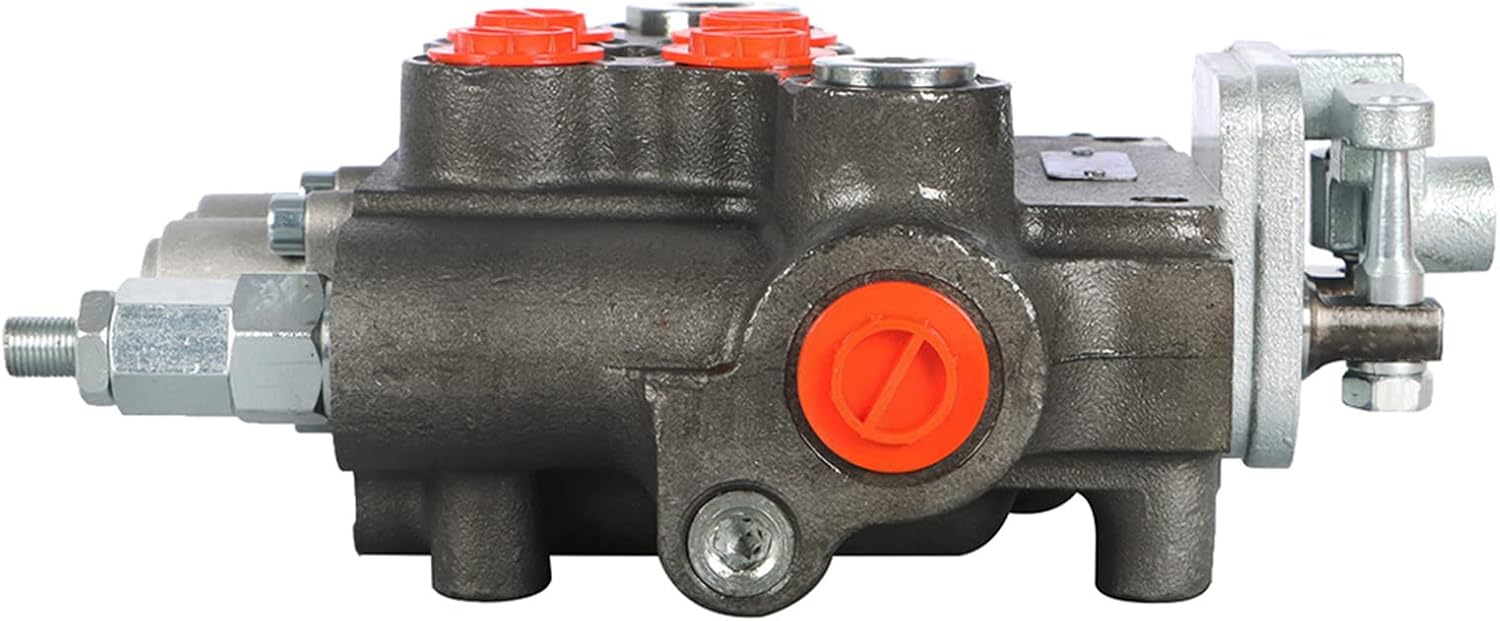

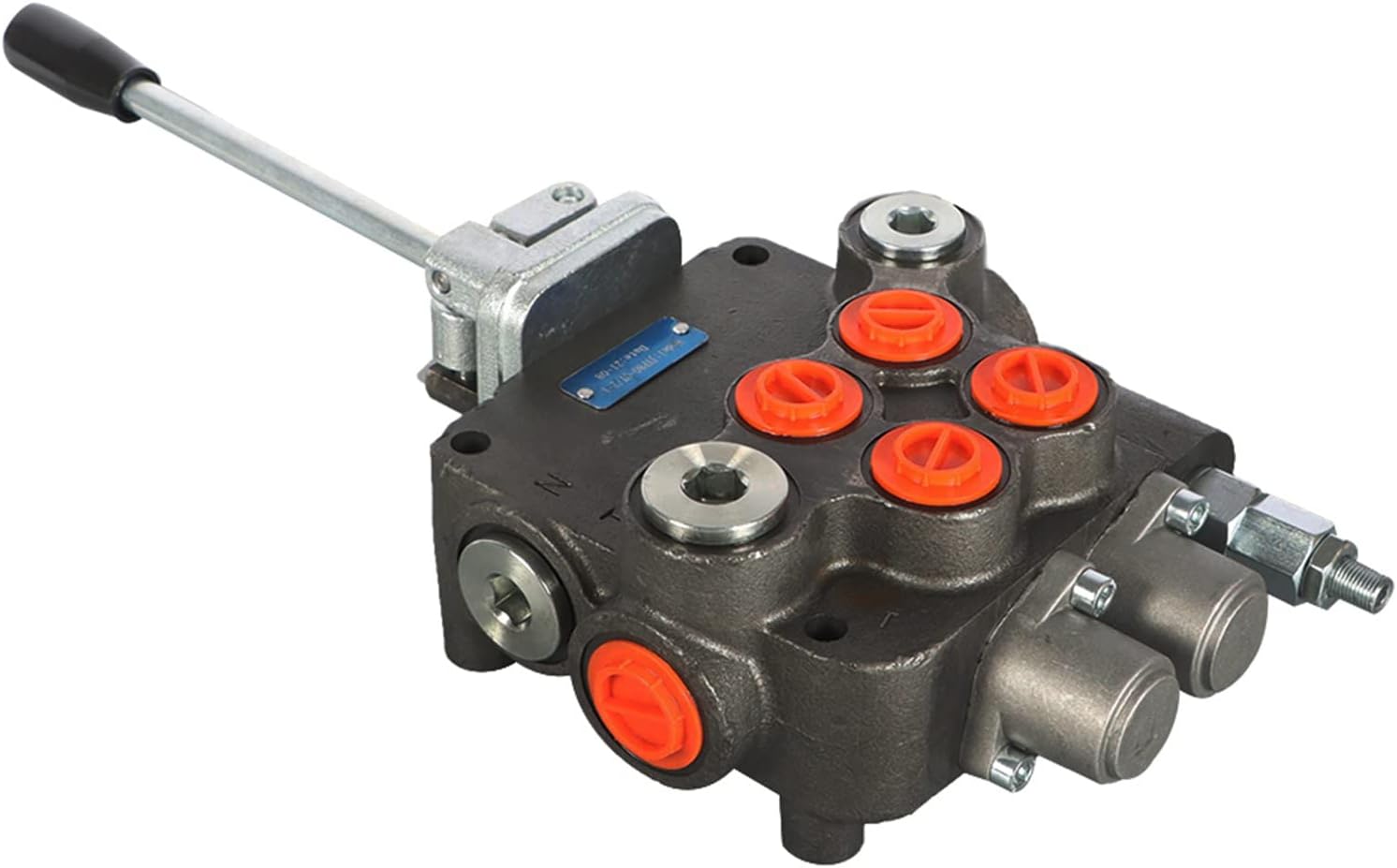

Hydraulic Reversing Valve for Tractor Loaders, With Joystick, 2 Spools, 21GPM Per Minute, SAE Interface

Hydraulic Directional Control Monoblock ValveDescriptionMax Operating Pressure: P = 3625 PSI, T = 725 PSI, A & B = 4350 PSIPreset Pressure Relief: 2610 PSIFlow Rating: 21 GPM (80 l/min)A & B Work Ports: 10 SAE O-Ring (7/8"-14) ThreadInlet Port: 10 SAE O-Ring (7/8"-14) ThreadOutlet Port: 12 SAE O-Ring (1-1/16â€-12) Thread3 – 5/16" Mounting HolesCommon Uses:Operate hydraulic cylinders (Double-Acting or Single-Acting)Operate hydraulic motors ("D" Spool Required)Install rear remotes on a tractorFeature--2 Spool valve with compact design allows for installations in tight areas.--Used for open center systems (Pump to Tank Flow) - closed center option available.Package Including1 x Hydraulic Directional Control Valve

• This monoblock valve is a hydraulic directional control valve. These valves are used to start and stop fluid flow into hydraulic cylinders or hydraulic motors.
• 2 Spool with Joystick Control, 21GPM flow, 3625 max PSI.
• Precision ground and hard chrome-plated spools assure a long life. High-tensile strength cast iron monoblock construction.
• Used for small tractors, tractors loaders, log splitters and other mobile.
• All spools are standard double acting with spring return to neutral position which are ideal for double acting cylinders.
