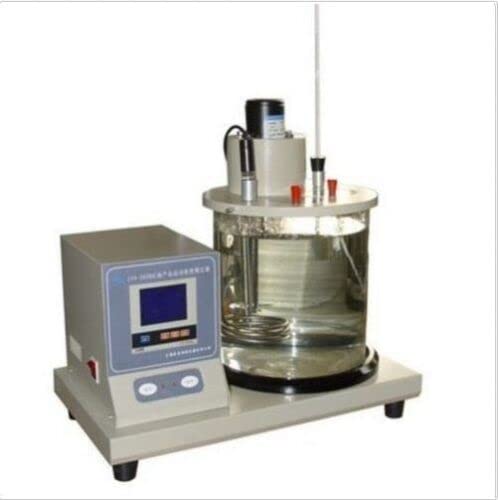

Kinematic Viscosity Tester Kinematic Viscosity Meter Viscometer SYD-265B

Summary This instrument is designed and made as per the industrial standard of People’s Republic of China SY/T5651 Technical Condition of Petroleum Products Kinematic Viscosity Tester. It is suitable to determine kinematic viscosity of liquid petroleum products(Newtonian fluids)at a constant temperature as per the stipulation in the national standard of People’s Republic of China GB/T265 Petroleum products-Determination of kinematic viscosity and calculation of dynamic viscosity. I. Main technical features 1. This instrument adopts a type of all-in-one machine.The control switch adopts light-touch mode.It has the features of novel design,compact structure and beautiful appearance. 2. This instrument adopts LCD temperature controller.The temperature control is rapid.The response is fast.The overshoot is small.The temperature control accuracy can reach ±0.1℃. 3. This instrument adopts hard glass bath and electric stirring device.Easy to observe the sample.The temperature in water bath is uniform. II.Main technical specifications 1. Power supply： AC(220±10%)V，50Hz 2. Heating device： Electric heating，power 600W 3. Stirring motor： Power 6W，rotating speed 1200RPM 4. Temperature control range： Room temperature～100℃ 5. Temperature control accuracy： ±0.1℃ 6. Temperature sensor： RTD, Pt100 7. Ambient temperature： Room temperature～35℃ 8. Relative humidity： ≤85％ 9. Capillary viscometer tubes(Pinkevitch viscometer)：7 pieces in total, inner diameter for each: 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm 10. Dimension： 500mm×310mm×500mm Net Weight：about 16Kg

• Testing Principle - The Kinematic Viscosity Tester operates on the principle of measuring the time taken for a fixed volume of fluid to flow through a capillary tube under the force of gravity.
• Accurate Impulsing - The tester is equipped with a precise impulse valve, which ensures accurate measurement results by enabling precise start and stop timing of the testing process.
• Digital Display - The Kinematic Viscosity Meter has a clear digital display that shows test parameters like temperature, viscosity, and time, and also indicates test progress and status.
• Compact Design - With its compact and portable design, the Kinematic Viscosity Tester is easy to move around and suitable for use in laboratories, production facilities and in the field.
• User-Friendly Interface - The user-friendly interface of the Kinematic Viscosity Meter makes it simple to operate, and the device can be controlled by a single keypad for greater convenience and ease of use.
